Fiber Optic OTF Patch Panel

An OTF fiber optic patch panel is a structured enclosure that organizes, terminates, and protects fiber optic cables, providing flexible and scalable connectivity for data centers, enterprise networks, and FTTH deployments.

Overview and Function

An OTF (Optical Termination Frame) fiber optic patch panel serves as a centralized point for managing fiber connections. It allows technicians to terminate incoming fibers, cross-connect them, and patch them to active equipment such as switches, OLTs, or servers without disturbing the main cable runs . These panels are essential for maintaining network reliability, minimizing insertion loss, and protecting delicate fiber strands from damage .

Types and Mounting Options

Fiber patch panels come in various configurations to suit different environments :

• Rack Mount (1U–4U): Standard for data centers and telecom rooms, supporting high-density connections.

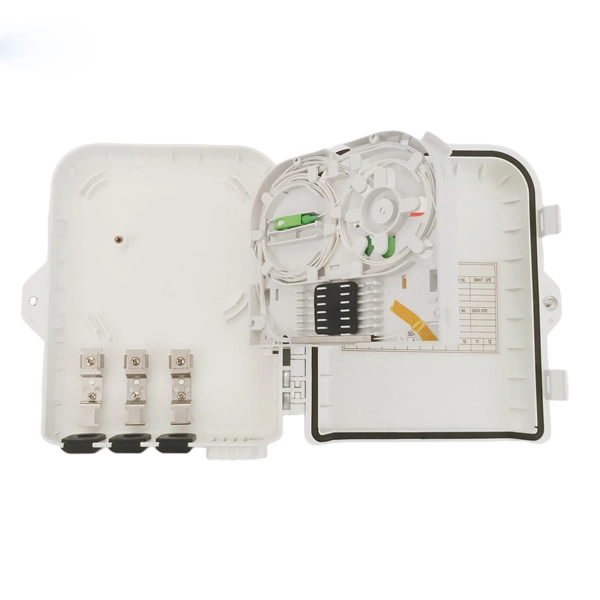

• Wall Mount: Ideal for building entry points or small office spaces with limited floor space.
• DIN-Rail Mount: Used in industrial automation or manufacturing environments.

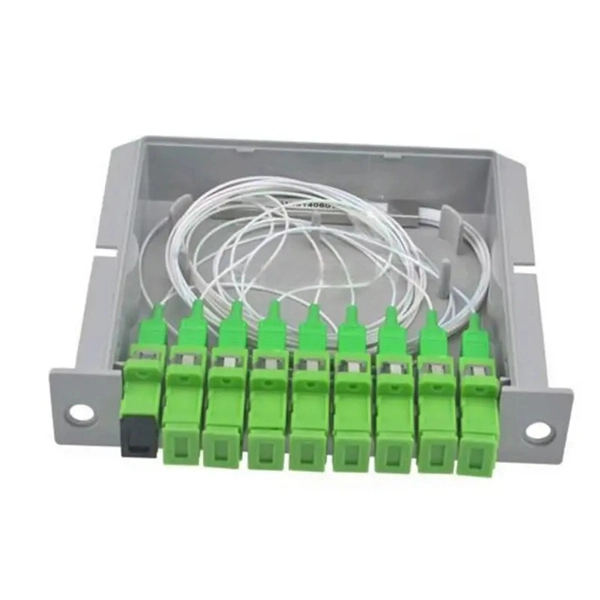

• Cassette-Based Panels: Modular design allows easy migration from 10G to 400G/800G networks without replacing the entire panel .

Port Density and Connectivity

Modern OTF patch panels support a wide range of port densities, from small-scale 12-port panels to ultra-high-density panels accommodating 144–288 fibers per 1U . They can use pre-terminated pigtails, adapters, or MPO/MTP® cassettes to simplify installation and reduce field termination errors. Proper bend radius protection is included to prevent micro-bending losses and maintain optical link performance .

Applications

• Data Centers: Connect spine-leaf architectures, TOR switches, and high-speed uplinks.
• Enterprise Networks: Floor IDFs and server rooms for structured cabling.
• FTTH / PON Networks: Terminate feeder cables, connect to PLC splitters, and distribute to ONTs .
• Telecom Hubs: Centralized termination for outside plant (OSP) fibers.

Comparison with ODF

While ODFs are used for large-scale, centralized fiber management in core rooms or meet-me rooms, fiber patch panels are typically deployed in cabinets or floor wiring rooms for convenient jumper connections to active devices . ODFs handle trunk cables and splicing, whereas patch panels focus on flexible, operational connectivity and easier maintenance.

Key Considerations

When selecting an OTF fiber optic patch panel, consider:

• Standards Compliance: TIA-568, ISO/IEC 11801 for interoperability.
• Port Density vs. Serviceability: Balance high-density panels with technician accessibility.
• Modularity: Ability to upgrade or migrate to higher-speed networks.
• Installation Type: Rack, wall, or DIN-rail depending on space and environment.
• Pre-Terminated vs. Field Termination: Pre-terminated panels reduce errors and deployment time . OTF fiber optic patch panels are critical for building scalable, organized, and reliable fiber networks, ensuring efficient management of high-speed optical connections while supporting future network growth.
