Fiber optic interface panel with power supply

Fiber optic interface panels with integrated power supply combine high-density fiber connectivity with DC power delivery for remote devices, supporting PoE extension and media conversion over long distances.

Overview

Fiber optic interface panels with power supply are designed to deliver both data and power to remote devices such as Wi-Fi access points, security cameras, small cells, and other low-voltage DC-powered equipment. These systems often use hybrid fiber/copper cabling, allowing a single cable run to carry optical signals and DC power simultaneously, reducing installation complexity and cost (CommScope) .

Key Features

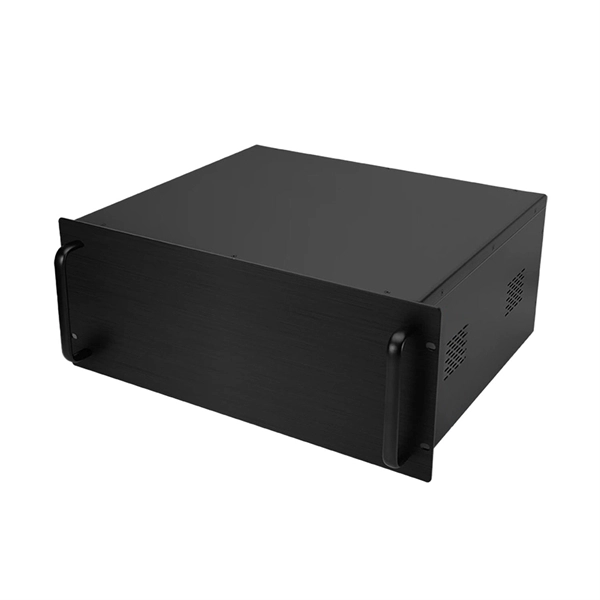

• Modular Design: Panels are available in standard 19-inch rack sizes (2U or 4U), supporting multiple media and power modules for flexible deployment (Fiber Connections) .
• Power Supply Integration: Power modules provide DC output (e.g., 56VDC, 250W per module) to drive PoE, PoE+, or PoE++ devices. Panels can accommodate multiple power modules, with total capacities up to 1300W in 4U configurations .
• Fiber Connectivity: Supports LC duplex, SC, or MTP/MPO connectors, compatible with single-mode (OS2) or multimode (OM1–OM4) fibers. Media modules can handle 100Mb/s to 1Gb/s transmission, with distances ranging from hundreds of meters to several kilometers depending on fiber type .
• PoE Extension: Enables powering devices beyond standard Ethernet distance limitations (100 meters), with Class 2 compliant models for safety and regulatory compliance .
• Rack and Wall Mount Options: Panels can be installed in racks or wall-mounted enclosures, often with cable management, splice trays, and modular adapter plates for easy maintenance and expansion (FIS, FS) .

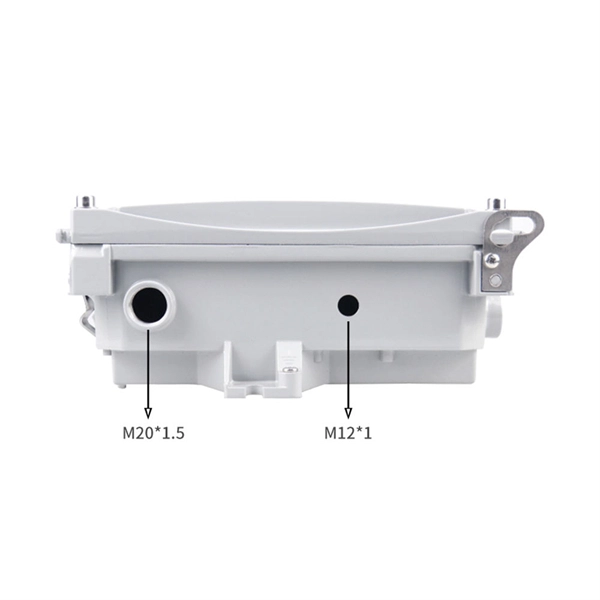

• Environmental Protection: Outdoor-rated enclosures provide IP68 sealing and SELV/Class 2 compliance for safe deployment in harsh environments .

Applications

• Campus networks, airports, stadiums, and parking areas
• Fiber-to-the-room or fiber-to-the-edge deployments
• Smart building IoT devices and digital signage
• Security and surveillance systems
• Small cell base stations and Wi-Fi access points

Example Products

• CommScope Powered Fiber Cable Systems: Hybrid fiber/copper cabling with PoE extenders and DC power distribution, supporting up to 32 devices from a single power source .
• Fiber Connections Power Patch Panel: Modular 2U/4U chassis with media and power modules, LC or MTP fiber ports, and PoE/PoE+/PoE++ support .
• FIS F1DW4X Wall-Mount Panel: LC connector, 64-fiber capacity, dual splice trays, and multiple cable entry options for wall-mounted installations .

Benefits

• Simplified Installation: Reduces the need for separate power cabling and conduit runs.
• Scalable and Flexible: Modular design allows easy expansion and reconfiguration.
• Long-Distance Power Delivery: Extends PoE beyond standard Ethernet limits, ideal for remote or outdoor devices.
• Centralized Power Management: Power modules can be backed up with UPS systems for reliability. These panels are ideal for modern network infrastructures where high-density fiber connectivity and remote device power are required simultaneously, providing a cost-effective and efficient solution for enterprise, industrial, and campus environments.
