Fiber Optic Panel Termination

A fiber optic termination panel is a structured enclosure that organizes, secures, and provides access points for fiber optic cable terminations in high-density network environments.

Overview

A fiber optic termination panel (also called a fiber patch panel, distribution box, or termination box) serves as a central point for terminating, organizing, and managing fiber optic cables. It ensures proper bend radius, protects connectors, and provides easy access for maintenance, testing, and network expansion . These panels are essential in data centers, telecom rooms, and enterprise networks.

Types and Configurations

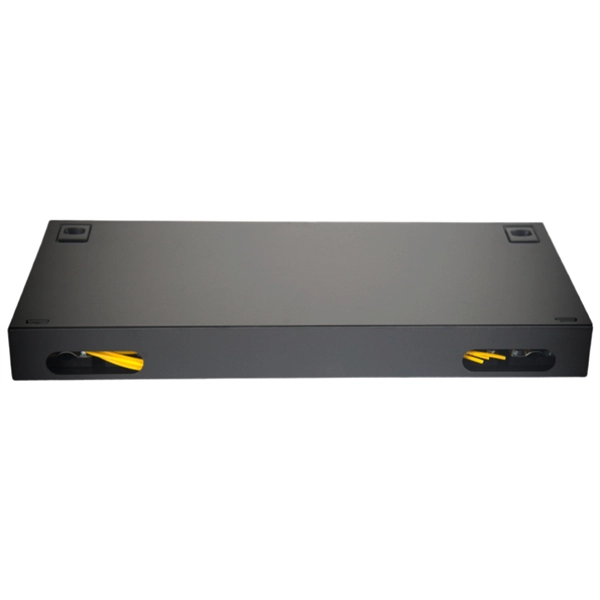

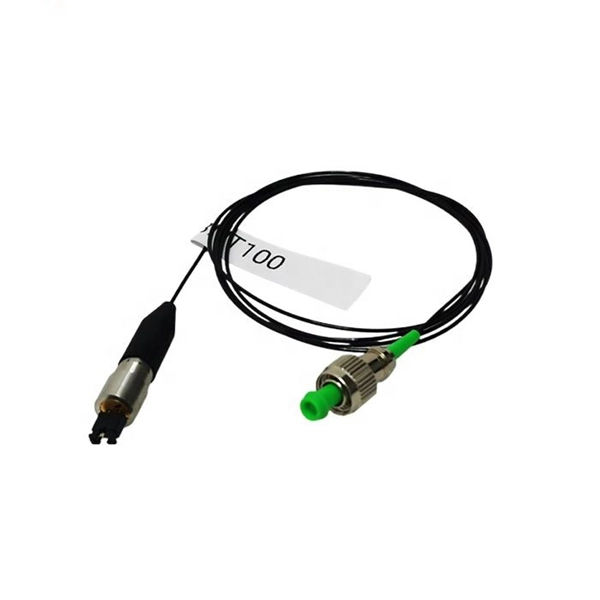

• Rack Mount Panels: Designed to fit standard 19" or 21" racks, available in 1U to 4U sizes. They can be preloaded with fiber pigtails and adapter plates or blank for custom terminations .

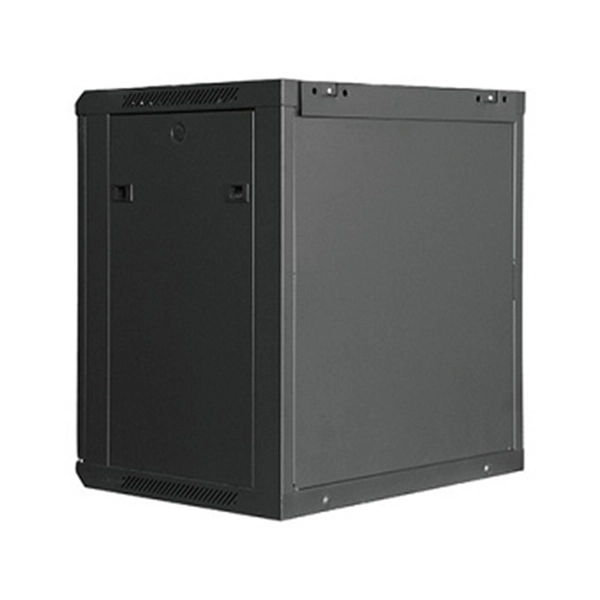

• Wall Mount Panels: Compact enclosures for smaller spaces or edge networks, available in 1, 2, or 4-panel configurations .

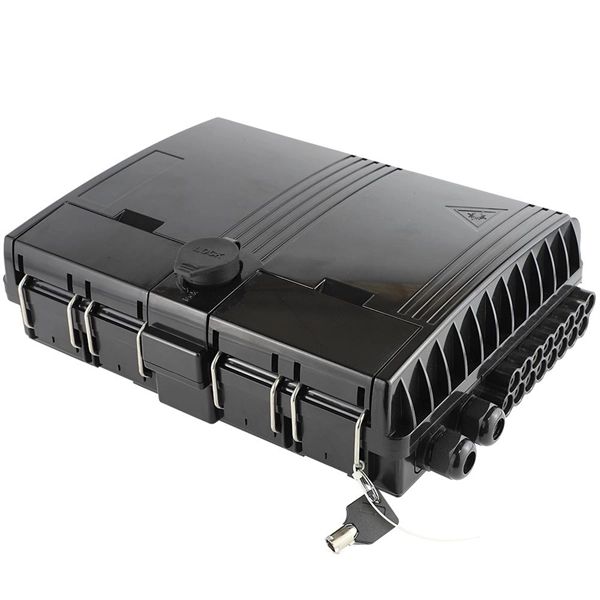

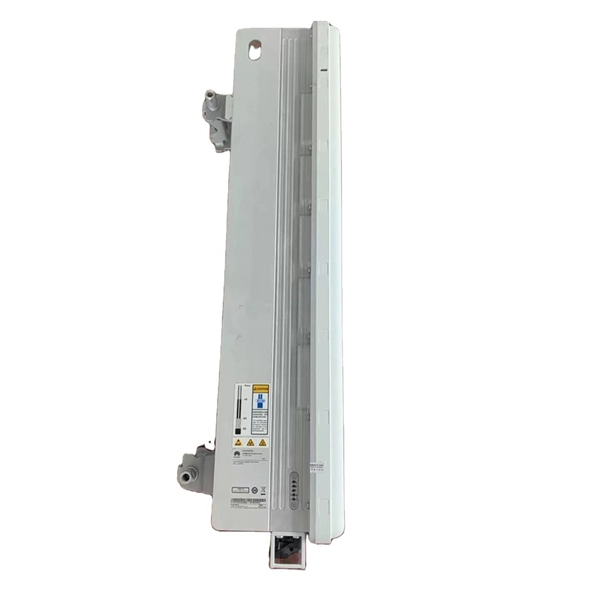

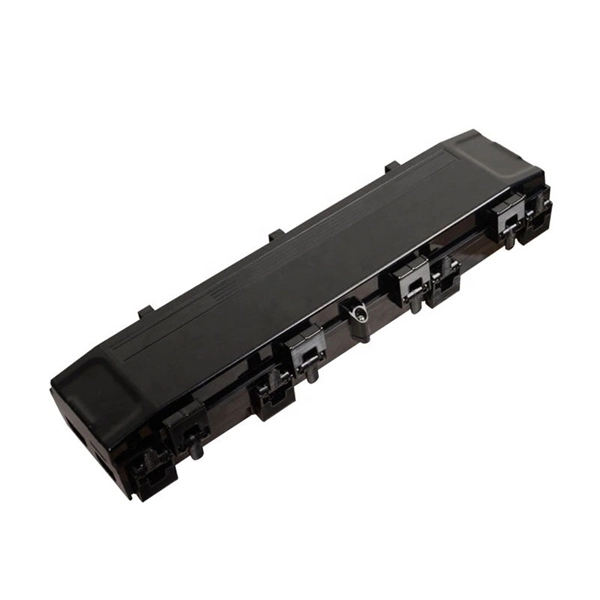

• Outdoor/Harsh Environment Panels: Built to withstand weather and rugged conditions, protecting fiber connections in outdoor installations .

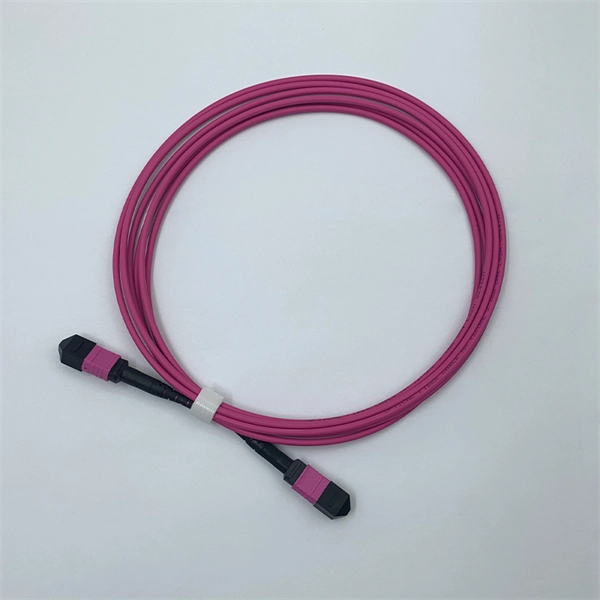

• High-Density Panels: Support large numbers of fibers in a single unit, often using modular LC, SC, or MPO/MTP connectors for efficient space utilization .

Components

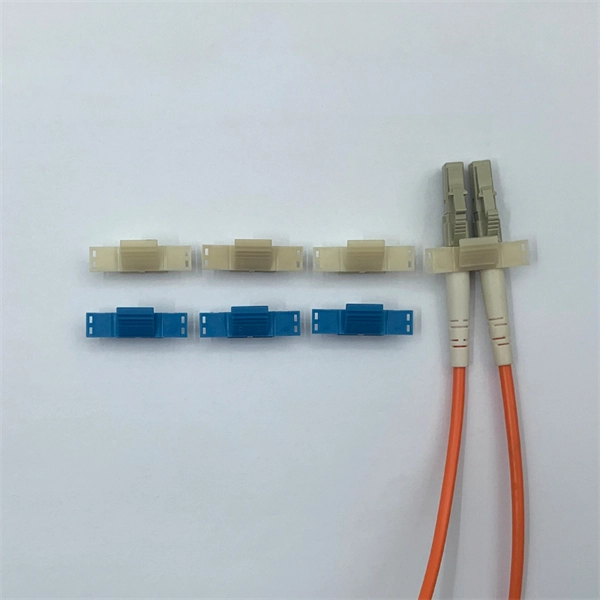

• Adapter Panels: Accommodate various connector types such as LC, SC, ST, and MTP/MPO, supporting both singlemode and multimode fibers .

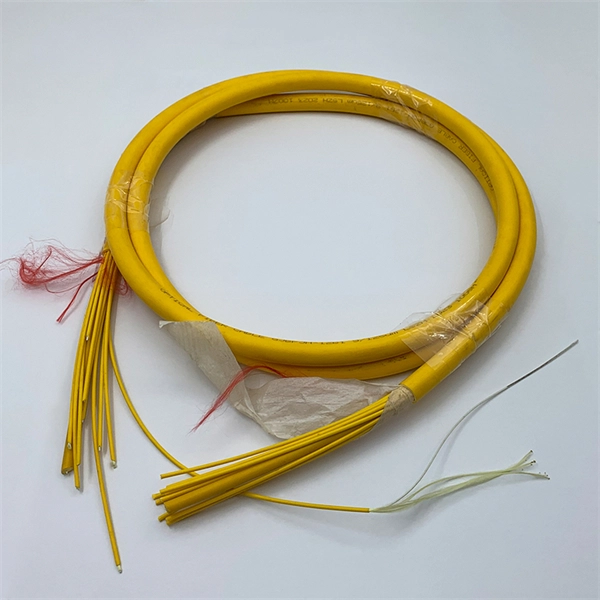

• Splice Trays: Hold fiber splices securely, allowing for on-site terminations and organized cable management .
• Modules and Cassettes: Pre-terminated or MPO modules enable plug-and-play connectivity, simplifying moves, adds, and changes .

Features and Benefits

• Organization and Accessibility: Keeps fiber connections neat and accessible for maintenance and troubleshooting .
• Protection: Safeguards fibers from physical damage and maintains proper bend radius to prevent signal loss .
• Scalability: Modular designs allow for network expansion without major reconfiguration .
• Flexibility: Supports multiple fiber types, connector styles, and deployment environments, including indoor and outdoor .

Selection Considerations

When choosing a fiber optic termination panel, consider:

• Fiber count and density: Match the panel to current and future network needs.
• Connector type compatibility: Ensure the panel supports the connectors used in your network.
• Mounting style: Rack, wall, or outdoor enclosure depending on space and environment.
• Pre-terminated vs. field-terminated: Pre-terminated panels reduce installation time, while field-terminated panels offer customization . Fiber optic termination panels are a critical component for maintaining a reliable, organized, and scalable fiber optic network infrastructure, providing both protection and accessibility for high-performance connectivity .
