Is the grounding bar of the distribution box grounded

Yes, the grounding bar of a distribution box must be properly grounded to ensure electrical safety and compliance with standards.

Purpose of Grounding

The grounding bar, often labeled as a PE (Protective Earth) bar, provides a common point to connect all metallic parts and electrical components that require grounding. Proper grounding ensures:

• Safety: Directs fault currents safely to earth, reducing the risk of electric shock or fire .
• Equipment Protection: Prevents damage to electrical devices from overvoltage or lightning strikes .
• Voltage Stabilization: Maintains a consistent reference potential across the system .

How to Ground the Grounding Bar

1. Locate the PE Bar: Open the distribution box and identify the grounding bar or PE terminal .
2. Connect the Power Ground: Attach the main ground wire from the power supply to the PE bar using a copper conductor of appropriate size (typically yellow-green insulated wire) .
3. Bond Electrical Components: Any metallic components or devices inside the box that require grounding should be connected to the PE bar to ensure safe operation .
4. Secure Connections: Strip the wire ends, insert them into the terminal, and tighten screws firmly to prevent looseness .
5. Verify Resistance: The total ground resistance between system parts should be low (e.g., <0.1 Ohm) to ensure effective grounding .

Code and Standard Requirements

• In the US, the National Electrical Code (NEC) mandates that metallic boxes and components be bonded to ground using designated grounding screws or clips (NEC 250.148, NEC 314.28) .
• In Europe and other regions, grounding is guided by IEC standards and national regulations such as BS 7671, which require proper earthing of distribution boards and metallic components .

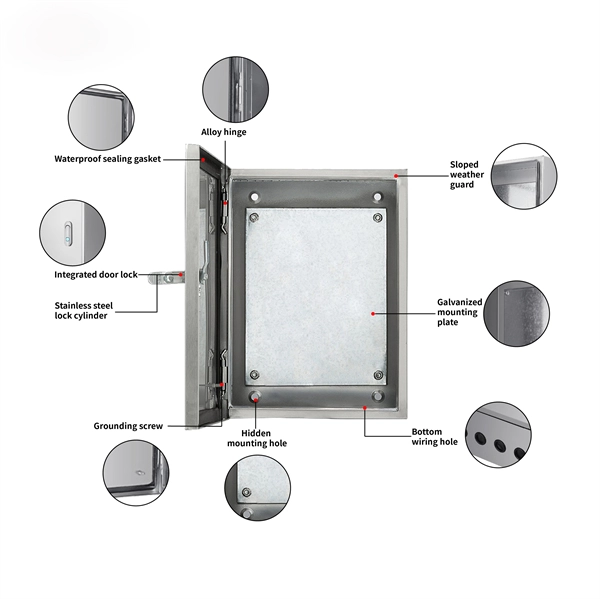

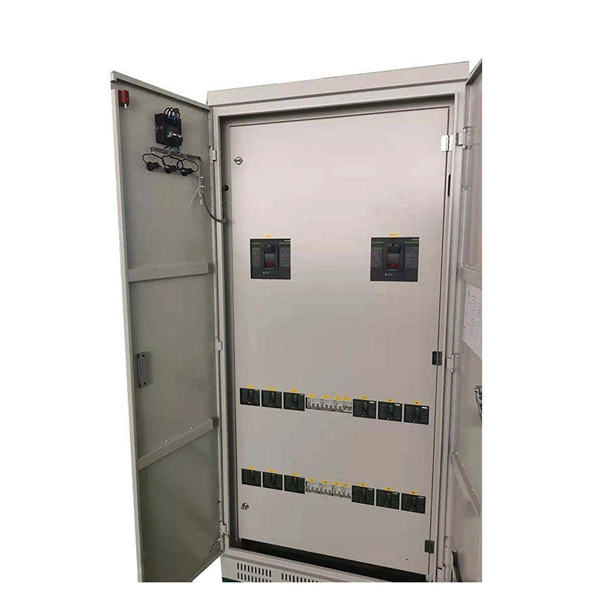

• Even distribution box doors made of metal should be bonded to the grounding bar to prevent potential differences and shock hazards .

Key Takeaways

• Always ground the PE bar in a distribution box.
• Use properly sized copper conductors and secure connections.
• Bond all metallic components to the PE bar, including doors if metallic.
• Test the grounding system to ensure low resistance and compliance with local electrical codes . Proper grounding of the distribution box and its grounding bar is essential for both safety and regulatory compliance.
