How to test the quality of fiber optic communication cables

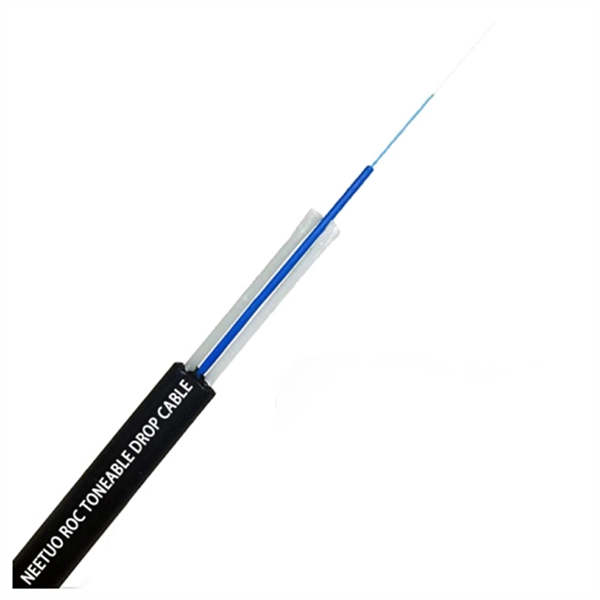

Fiber optic cable quality is tested using visual inspection, insertion loss measurement, OTDR analysis, and continuity checks to ensure optimal performance and compliance with industry standards.

Key Testing Methods

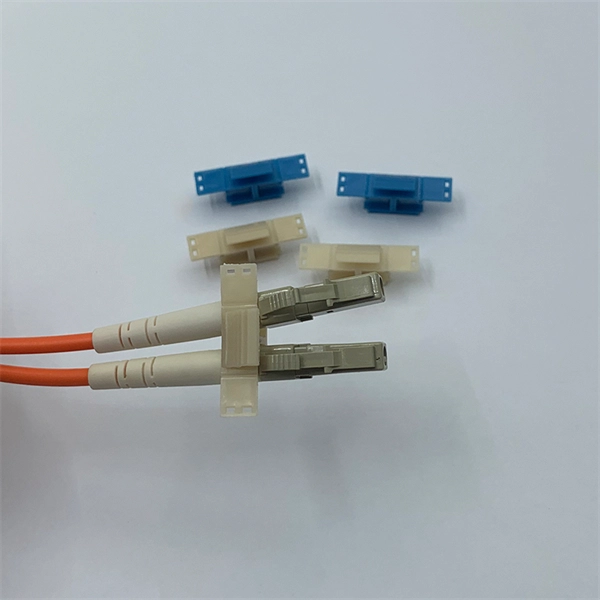

1. Visual Inspection Before any optical measurement, inspect the fiber endfaces using a fiber scope or microscope to detect dirt, scratches, cracks, or contamination that can degrade signal quality. Visual inspection should be performed both before and after testing to ensure connectors and splices are clean and undamaged . 2. Insertion Loss Testing (OLTS / Power Meter & Light Source) Insertion loss testing measures the total optical loss across a fiber link, confirming whether the cable meets the design loss budget. This involves connecting a light source at one end and a power meter at the other, typically at standard wavelengths (e.g., 1310 nm for single-mode, 850 nm for multimode). The measured loss is compared against TIA/EIA or project-specific limits . 3. Optical Time-Domain Reflectometer (OTDR) Testing OTDR testing sends pulses of light through the fiber and analyzes backscatter and reflections to detect faults, bends, splices, or breaks along the cable. It is especially useful for long-distance or outdoor fiber runs, providing a graphical representation of the fiber's performance and pinpointing problem locations . 4. Visual Fault Locator (VFL) A VFL injects visible red light into the fiber to quickly identify breaks, sharp bends, or discontinuities. While it does not provide quantitative loss data, it is effective for rapid fault detection and troubleshooting . 5. Continuity and Polarity Testing Continuity testing ensures that each fiber core is intact and correctly mapped from end to end. This is critical for multi-fiber cables and ensures proper signal routing in the network .

Mechanical and Environmental Considerations

Fiber quality also depends on mechanical integrity. Improper handling during installation can cause latent defects that optical tests alone may not reveal. Testing should include checks for bends, tension, and connector strain to prevent future signal degradation .

Standards and Compliance

Testing should follow recognized standards to ensure consistency and reliability:

• TIA/EIA: North American standards for fiber system design, installation, and testing.
• IEC: International standards covering fiber optic testing procedures.
• ISO: Quality management standards relevant to fiber optic networks .

Best Practices

• Always perform visual inspection before connecting fibers.
• Use OLTS or power meter/light source testing to establish baseline insertion loss.
• Apply OTDR testing for long-distance or complex cable runs.
• Document all test results for compliance and future troubleshooting.
• Ensure acceptance criteria match project specifications rather than generic limits . By combining these methods, technicians can verify fiber integrity, detect faults, and ensure optimal network performance, minimizing downtime and supporting reliable data transmission.
