How to connect a fiber optic splitter to multiple network cables

To connect a fiber optic splitter to a network cable, use fiber patch cables and adapters to link the splitter's input and output ports to your network devices, ensuring clean, secure connections and minimal signal loss.

Step 1: Identify the Splitter Type and Ports

Determine whether your splitter is a PLC splitter with connectors or a bare splitter. A PLC splitter with connectors (SC, LC, or APC) can be directly connected using fiber patch cables, while a bare splitter requires splicing into the fiber network . Identify the input port (single fiber from the source) and output ports (multiple fibers to devices) on the splitter .

Step 2: Prepare Fiber Patch Cables

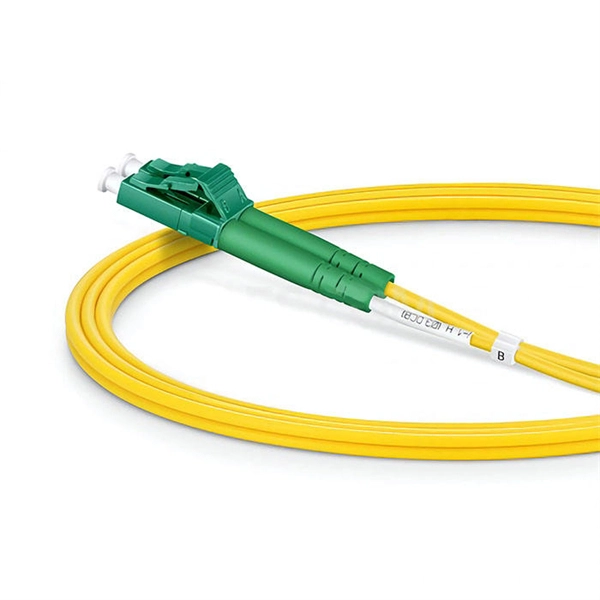

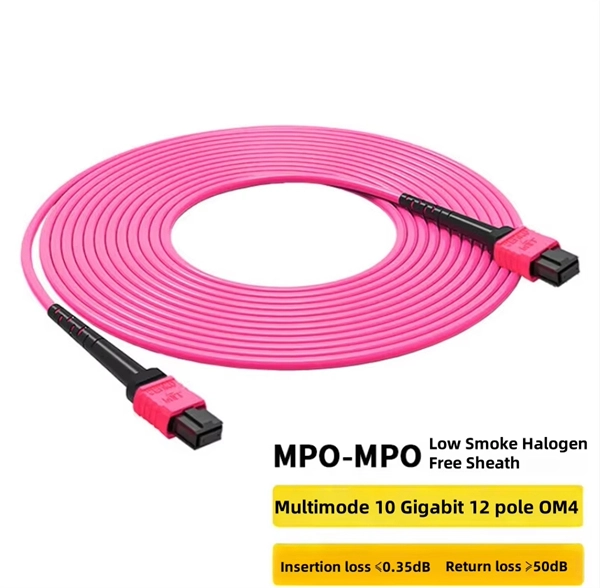

Use fiber optic patch cables compatible with your splitter's connectors. Ensure the cables are the correct length and have clean, undamaged connectors. Clean the fiber ends with a fiber optic cleaning kit to remove dust or debris, which is critical to prevent signal loss .

Step 3: Connect the Splitter

1. Input Connection: Connect the main fiber line from your ONT, OLT, or network source to the splitter's input port using a patch cable .
2. Output Connections: Connect each output port of the splitter to the corresponding network device or to another splitter if cascading. Use patch cables and adapters to ensure a secure fit .
3. Cascading Splitters (Optional): If connecting multiple splitters, link one output of the primary splitter to the input of the secondary splitter, keeping in mind that each split introduces signal loss .

Step 4: Secure and Organize

Place the splitter in a fiber distribution box or splice enclosure to protect it from dust, vibration, and physical damage. Coil any excess fiber neatly to avoid sharp bends, which can degrade signal quality .

Step 5: Test the Connection

Use an optical power meter or OTDR to measure signal strength and verify that the link attenuation is within acceptable limits. Check for uniformity across output ports and ensure no excessive loss occurs due to bending or dirty connectors .

Step 6: Maintenance

Periodically inspect the connections, clean connectors, and test optical power to maintain network performance. For high-density networks, consider quarterly checks of 10% of ports and annual full-link OTDR testing . By following these steps, you can reliably connect a fiber optic splitter to your network cables, ensuring stable signal distribution and minimal attenuation.
