Standards for Multi-layer Cable Tray Laying

Multi-layer cable trays must comply with IEC 61537 and related national standards, ensuring proper load capacity, spacing, material selection, and safety for multiple cable layers.

Key Standards and Guidelines

IEC 61537 is the primary international standard for metallic cable tray systems, covering construction, testing, and performance requirements. It specifies mechanical strength, corrosion resistance, electrical continuity, fire resistance, ventilation, and fill ratios, which are critical for multi-layer installations to prevent overloading and overheating . Compliance ensures safety, long-term reliability, and compatibility across different installations.

NEMA (National Electrical Manufacturers Association) provides guidelines for cable tray design in North America, including tray lengths, rung spacing, load capacity, and support intervals. Ladder trays, commonly used for multi-layer setups, are available in widths from 6 to 48 inches with rung spacings of 6, 9, 12, or 18 inches. Wider trays and rung spacing reduce overall strength, so load calculations must account for multi-layer cable weight .

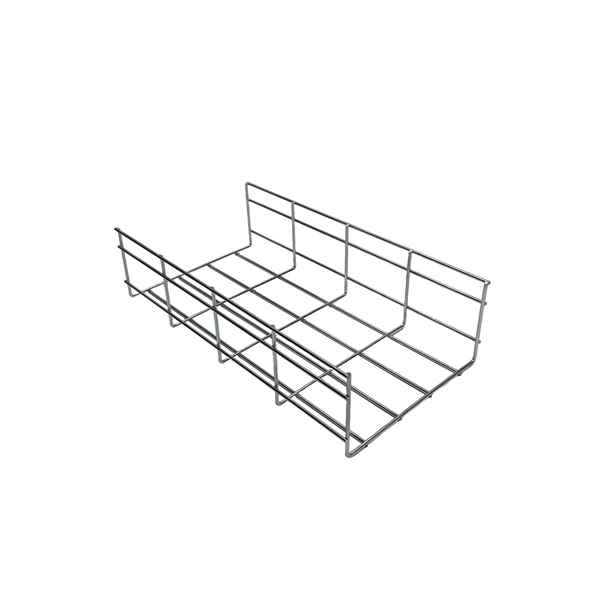

DIN EN 61537 (European equivalent) defines cable support systems, including trays, ladders, and mesh trays. It specifies materials (steel, stainless steel, aluminum), surface treatments for corrosion protection, and installation methods for horizontal and vertical routing, bends, T-pieces, and crossovers . Multi-layer trays must consider support spacing, mounting elements, and accessories to maintain structural integrity.

Design Considerations for Multi-Layer Trays

• Load Capacity: Each layer adds weight; trays must be rated for combined cable loads and environmental factors like wind or snow .
• Rung Spacing: Smaller spacing (6–12 inches) is recommended for small-diameter control and instrumentation cables, while larger power cables may require 9 inches or more .
• Ventilation and Fill Ratio: Proper perforation and spacing prevent heat buildup, which is critical when stacking multiple cable layers .
• Material Selection: Aluminum, steel, or stainless steel are chosen based on mechanical strength, corrosion resistance, and environmental conditions .
• Fire and Electrical Safety: Trays must maintain electrical continuity for grounding and meet fire resistance requirements, especially in critical facilities .

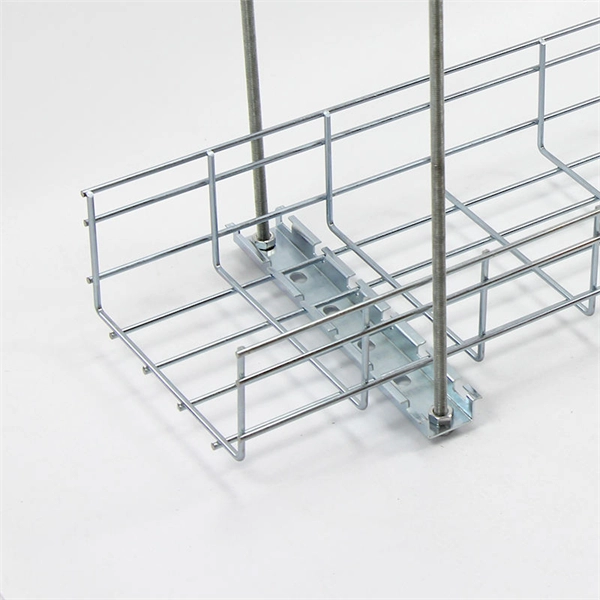

• Support and Span: Multi-layer trays require careful placement of supports and splice plates to prevent sagging and maintain structural integrity .

Best Practices

• Separate power and data cables to reduce electromagnetic interference.
• Use covers or barriers for additional protection in multi-layer configurations.
• Follow manufacturer-specific guidelines for maximum fill and bending radii to avoid cable damage .
• Ensure proper earthing and bonding for safety and compliance with electrical codes.

By adhering to IEC 61537, NEMA, and DIN EN 61537 standards, and considering load, spacing, ventilation, and material requirements, multi-layer cable tray systems can be safely and efficiently installed for industrial, commercial, and data center applications .
