The switches are connected via fiber optic cables

Switches can be connected using fiber optic cables with SFP/SFP+ modules, duplex fiber strands, and appropriate connectors to enable high-speed, long-distance network links.

Key Components

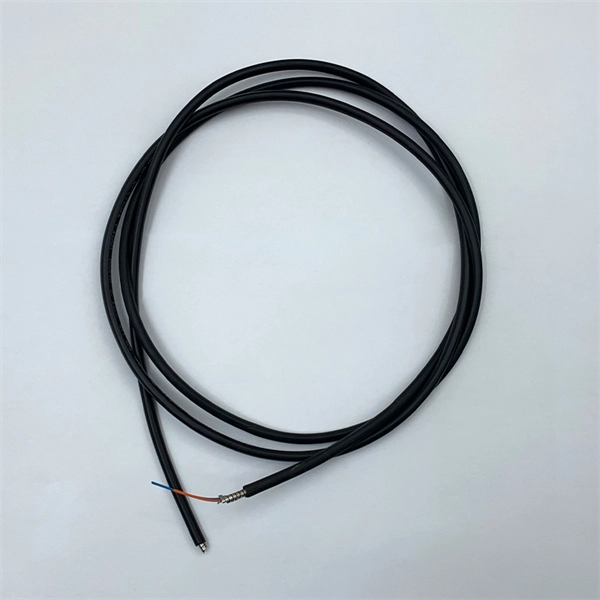

• Fiber Optic Cables: Two main types are used—single-mode for long-distance connections (kilometers) and multi-mode for shorter distances (up to ~1000 feet) .
• SFP/SFP+ Modules: Small Form-factor Pluggable transceivers that plug into switch ports. SFP supports up to 1 Gbps, while SFP+ supports 10 Gbps .
• Connectors: Common types include LC, SC, ST, and MTP/MPO, with LC being widely used for duplex connections in modern switches .
• Patch Panels: Optional, used to organize and manage fiber connections without disrupting the network .
• Media Converters: Required if a switch lacks SFP ports, converting electrical signals to optical signals .

Connection Process

1. Select Fiber Type: Choose multi-mode for short runs and single-mode for long runs .
2. Install SFP/SFP+ Modules: Insert modules into the switch ports, ensuring compatibility with the fiber type and network speed .
3. Attach Fiber Cables: Use duplex fiber strands, connecting the transmit (TX) port of one switch to the receive (RX) port of the other, and vice versa .
4. Check Port Configuration: Ensure the switch port is set to fiber mode if required .
5. Topology Considerations: Star topology is common for high performance, where all switches connect to a central hub, while daisy chain topology links switches sequentially .

Practical Tips

• Clean Connectors: Dust or debris can degrade signal quality, so always clean fiber connectors before connecting .
• Match Modules and Cables: Ensure SFP/SFP+ modules match the fiber type (single-mode or multi-mode) and the intended distance .
• Use Duplex Fiber: Most SFP transceivers require two strands for separate send and receive signals .
• Bandwidth Planning: Choose SFP modules according to the required network speed (1G, 10G, or higher with QSFP) . By following these steps and using the correct components, switches can be efficiently connected via fiber optic cables, providing high-speed, reliable, and long-distance network links suitable for enterprise, data center, or campus networks .
