Cascaded fiber optic switches zoned

Cascaded fiber optic switches use multi-stage splitters to efficiently distribute optical signals across zones, balancing cost, scalability, and network flexibility.

Overview of Cascaded Splitters

In FTTH networks, cascaded or multi-stage splitters divide a single optical signal from an OLT (Optical Line Terminal) into multiple outputs through a tree-and-branch topology. For example, a 1x32 split can be achieved by combining a 1x4 splitter at the first stage with a 1x8 splitter at the second stage, or other combinations like 1x2 to 1x16. This approach allows operators to reach the desired number of subscribers while optimizing fiber usage and deployment costs .

Centralized vs. Cascaded Architectures

• Centralized Splitting: A single-stage splitter (e.g., 1x32) is located in a central hub or fiber distribution hub (FDH). It connects directly to the OLT, and fibers are routed to each ONT (Optical Network Terminal). Centralized splitting offers greater flexibility, easier maintenance, and reconfigurable customer assignments via jumpers .
• Cascaded Splitting: Multi-stage splitters are deployed in the outside plant, often in closures or pedestals. For instance, a 1x4 splitter may feed four 1x8 splitters, reaching 32 homes. Cascaded splitting reduces initial fiber and equipment costs and can provide a faster return on investment, though it may be less flexible for reassigning customers .

Integration with Zoned Networks

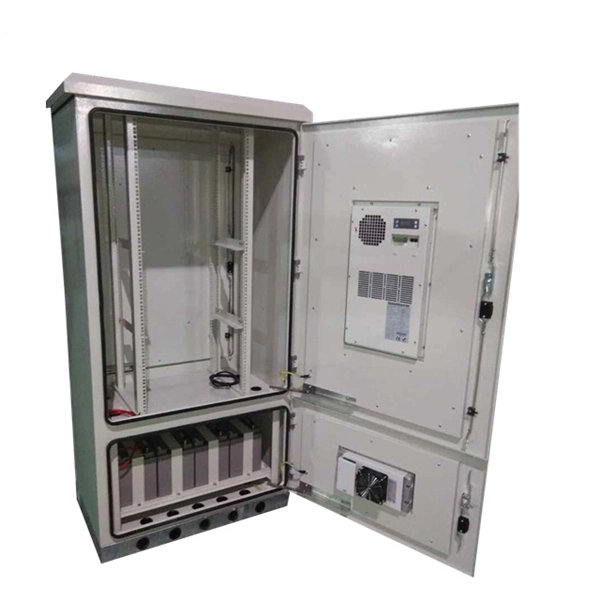

Zone-based cabling organizes fiber distribution into manageable areas, such as floors, rooms, or building sections. Cascaded splitters can be combined with zone enclosures, where each zone serves as a distribution point for multiple ONTs. This structured approach:

• Reduces congestion in telecom rooms
• Shortens horizontal cable runs
• Simplifies moves, adds, and changes
• Extends the reach of the PON backbone beyond copper limitations Zone enclosures can house splitters, patch panels, and active or passive devices, providing a flexible and scalable network design that aligns with cascaded splitter deployment.

Advantages of Cascaded Fiber Optic Switches

• Cost Efficiency: Fewer fibers and smaller splitters reduce initial CAPEX.
• Scalability: Additional subscribers can be added by extending the cascade.
• Optimized Power Distribution: Multi-stage splitting allows better management of optical power across the network.
• Compatibility with Structured Cabling: Works well with zone-based architectures for enterprise or multi-dwelling units .

Practical Considerations

When designing cascaded and zoned networks, operators must consider:

• Split Ratios: Choosing appropriate combinations (e.g., 1x2, 1x4, 1x8) to meet subscriber demand.
• Power Budget: Ensuring optical signal strength remains sufficient after multiple splits.
• Maintenance Access: Cascaded splitters in outside closures may be harder to reconfigure than centralized splitters.
• Network Growth: Cascaded designs should allow for future expansion without major fiber rework . Cascaded fiber optic switches in zoned networks provide a flexible, cost-effective, and scalable solution for modern FTTH deployments, balancing the trade-offs between centralized control and distributed efficiency.
